Sonde

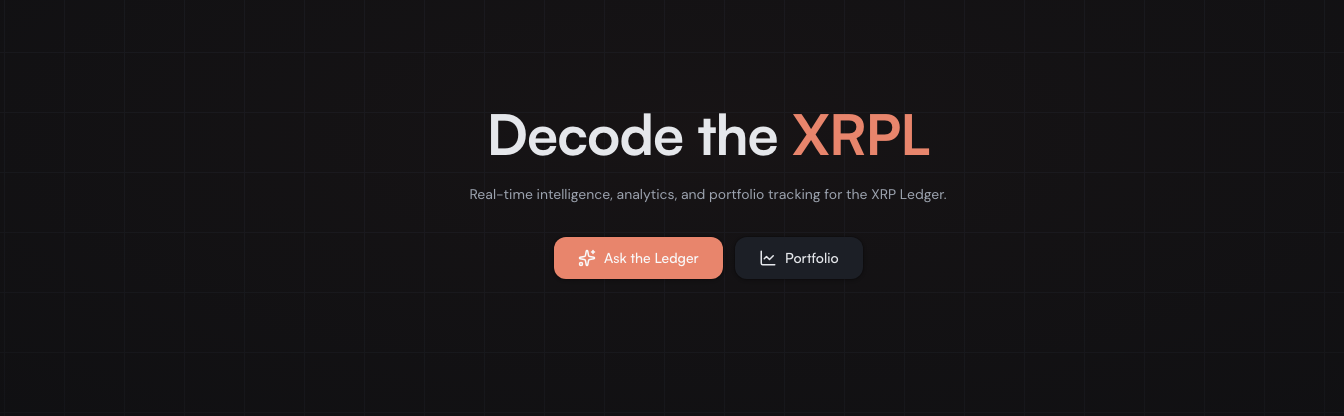

Sonde started from a specific frustration. Almost every blockchain explorer I used was hard to understand and not nice to look at — dense grids of raw hex, nothing prioritized, designed as if opacity was a feature. I didn’t want Sonde to be scary. A new user should land on an address and understand what they’re looking at without feeling like they stumbled into a terminal.

The fix was to let type do the work. Blockchain data is inherently dense, so the hierarchy has to be rigorous: display type for context, body type for narrative, monospace for every on-chain identifier, tabular numbers so columns align, muted uppercase labels. The page reads before color is introduced. Color then works as reinforcement — one warm accent for what matters, a quiet semantic palette for transaction types — never as the primary signal.

The product has to serve three users without compromising for any of them. The non-crypto-native wants plain English — what does this account hold, is any of this unusual. The trader wants a proper dashboard: P&L, cost basis, allocation, realized gains, performance versus XRP, AMM positions. The developer or forensics analyst wants depth — raw blobs, CTIDs, six-hop fund tracing, risk scoring, multi-turn investigations. Every screen serves the newcomer at the surface while deeper tabs unfold for the specialist. Progressive disclosure, not two different products. The natural-language query layer is the bridge: a trader can ask “show this wallet’s biggest winners this month,” a forensics user can ask to trace funds back six hops — same interface, different depth.

Motion follows the same rule as color — subtle, intentional, mostly invisible. Eased page transitions, slow pulses on live indicators, numbers that fade rather than snap, hover states that shift opacity instead of color. Most users will never notice the animations; they’ll just notice the product feels calm. That’s the broader principle: less noise. Dense data is not an excuse for dense UI. Every surface has to earn its place, and the measure isn’t how much Sonde shows — it’s how quickly the right information surfaces.

The name comes first. Sonde — French for probe. A sonde is an instrument you send into something to measure what’s happening inside and report back. Weather sondes go up into the atmosphere; oceanographic sondes go down into the water column; medical sondes enter the body. The product does the same for the XRP Ledger: it goes in, takes measurements, and reports back in a way a human can act on.

The color system is deliberately narrow. A cool slate foundation — near-black surfaces, muted neutrals — so the interface reads as calm even when it’s showing ten thousand transactions a minute. Against that, one warm accent: salmon #E8856C. It’s the only saturated color that appears anywhere in the core chrome. That scarcity is the point. When salmon shows up — on a live indicator, an active nav item, a key metric — you know it matters. Dark mode is the primary theme because traders and analysts spend hours in the product; light mode is the option, not the default.

The type system uses three fonts with distinct, non-overlapping roles. Satoshi carries display and marketing headings — geometric, confident, the voice of the brand. DM Sans handles product UI, body text, labels, and navigation — clean, readable at any size, optimized for dense layouts. IBM Plex Mono renders every address, transaction hash, ledger index, and raw amount — because financial identifiers have to be monospaced or they stop being scannable. Pairing a geometric sans with a humanist sans with a technical monospace gives the product three clear registers, and every string in the UI belongs to exactly one of them.

Within that restrained palette, transaction types get a semantic color system. Payments are blue. Offers and DEX fills are gold. NFT operations are purple. Trust lines are green. AMM actions are pink. These are always subordinate to the grayscale — they appear as small colored dots or single-word tags, never as full colored rows or backgrounds — but they let a trained eye scan a thousand-row activity feed and spot the pattern without reading every line. Color does the work that an icon system would do elsewhere, and it does it without adding visual weight.

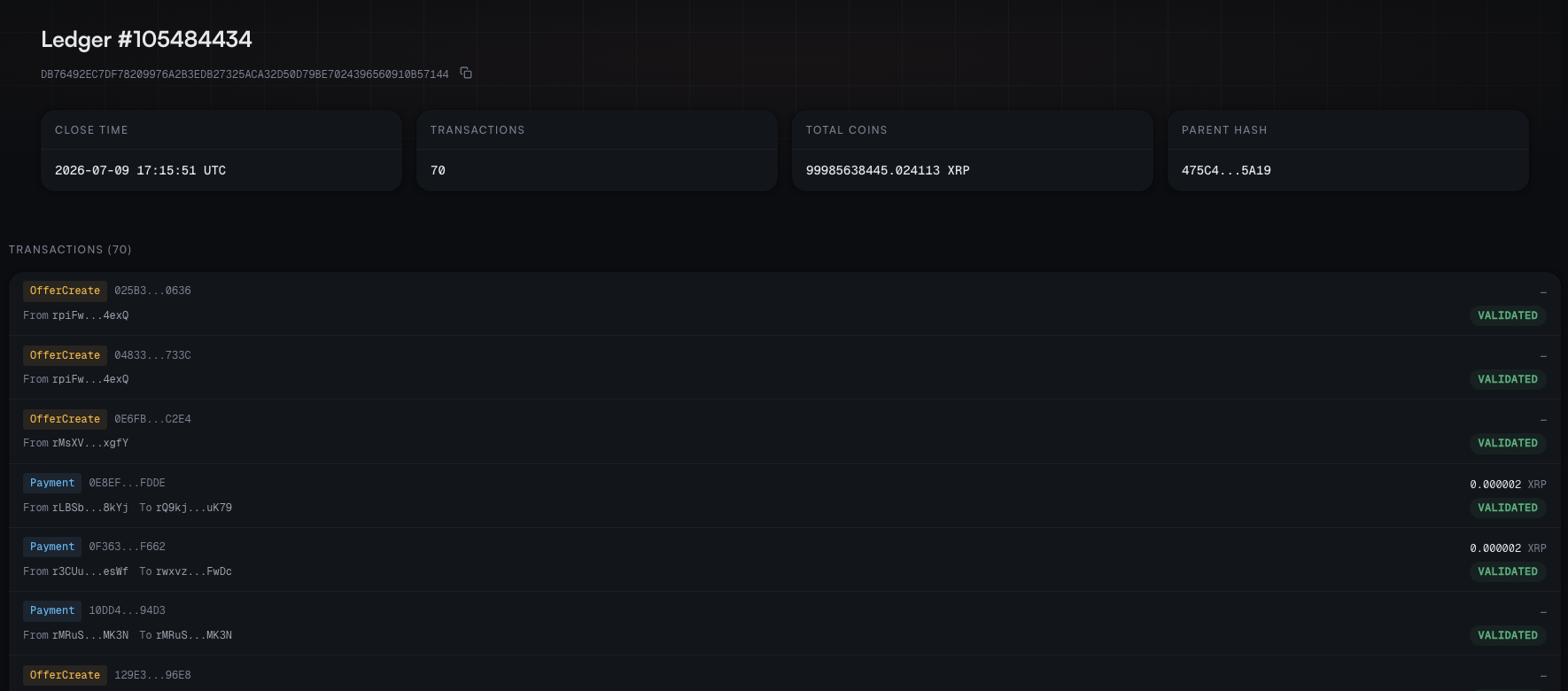

The XRP Ledger produces a ledger every 3–5 seconds, each containing hundreds of transactions across dozens of types. The architecture challenge was organizing this into pages that feel browsable rather than overwhelming. The primary navigation covers the explorer (Search, Portfolio, Network, DEX, Tokens, NFTs) and the intelligence layer (Intel overview, Trace, Investigate, Smart Money, Risk, Alerts, Watchlist) — each serving a distinct analytical purpose, with Docs and About rounding out the surface.

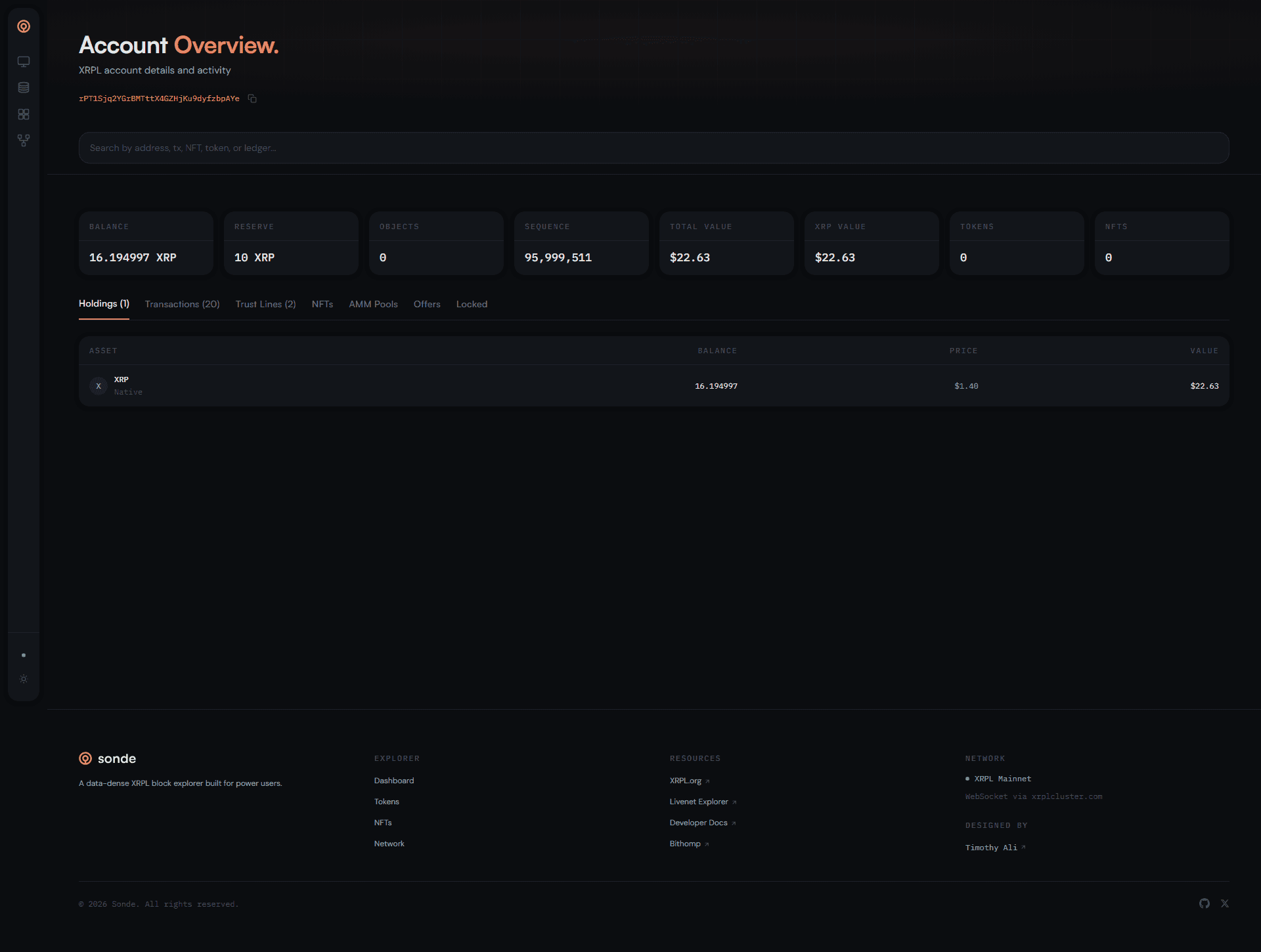

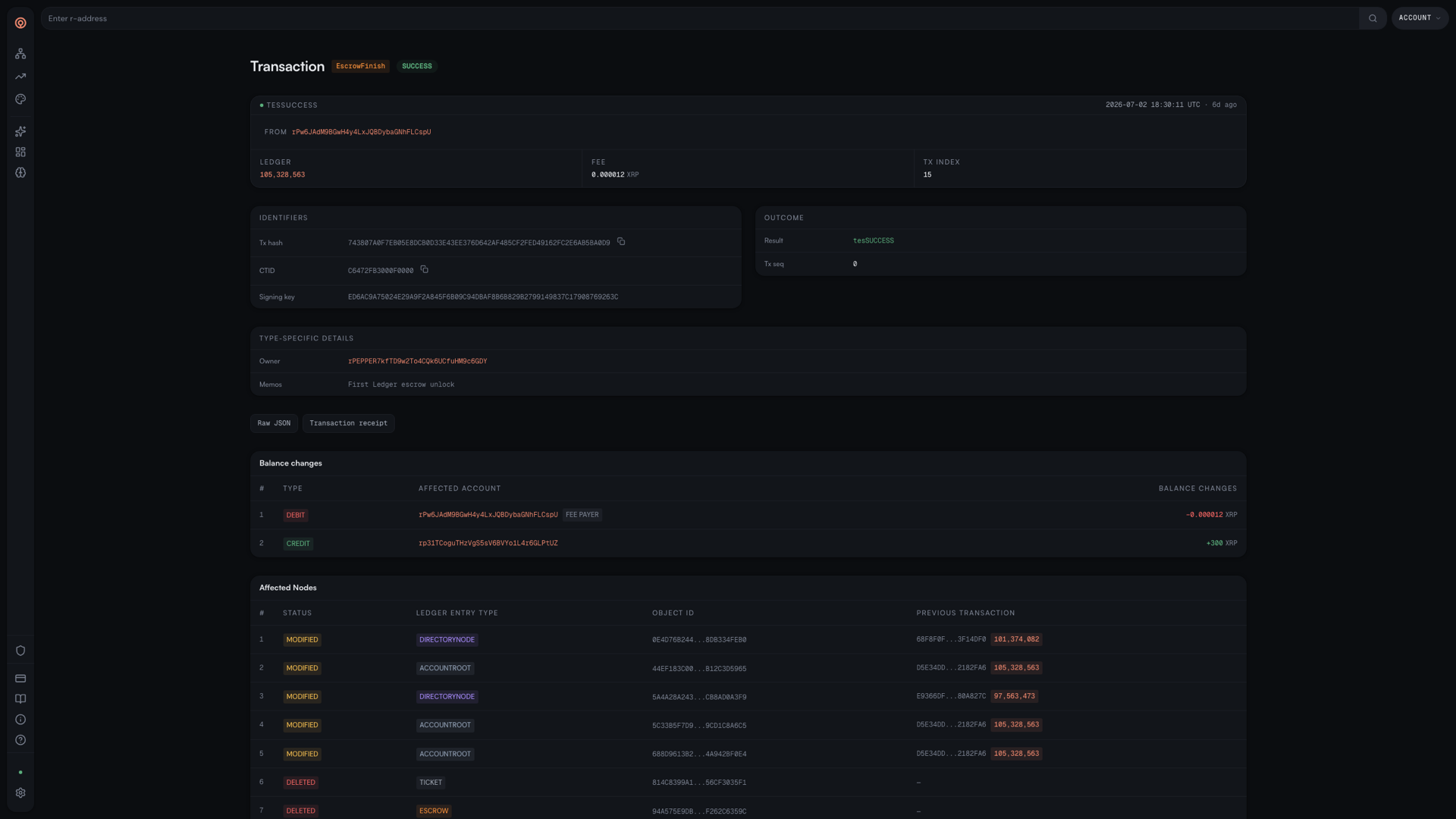

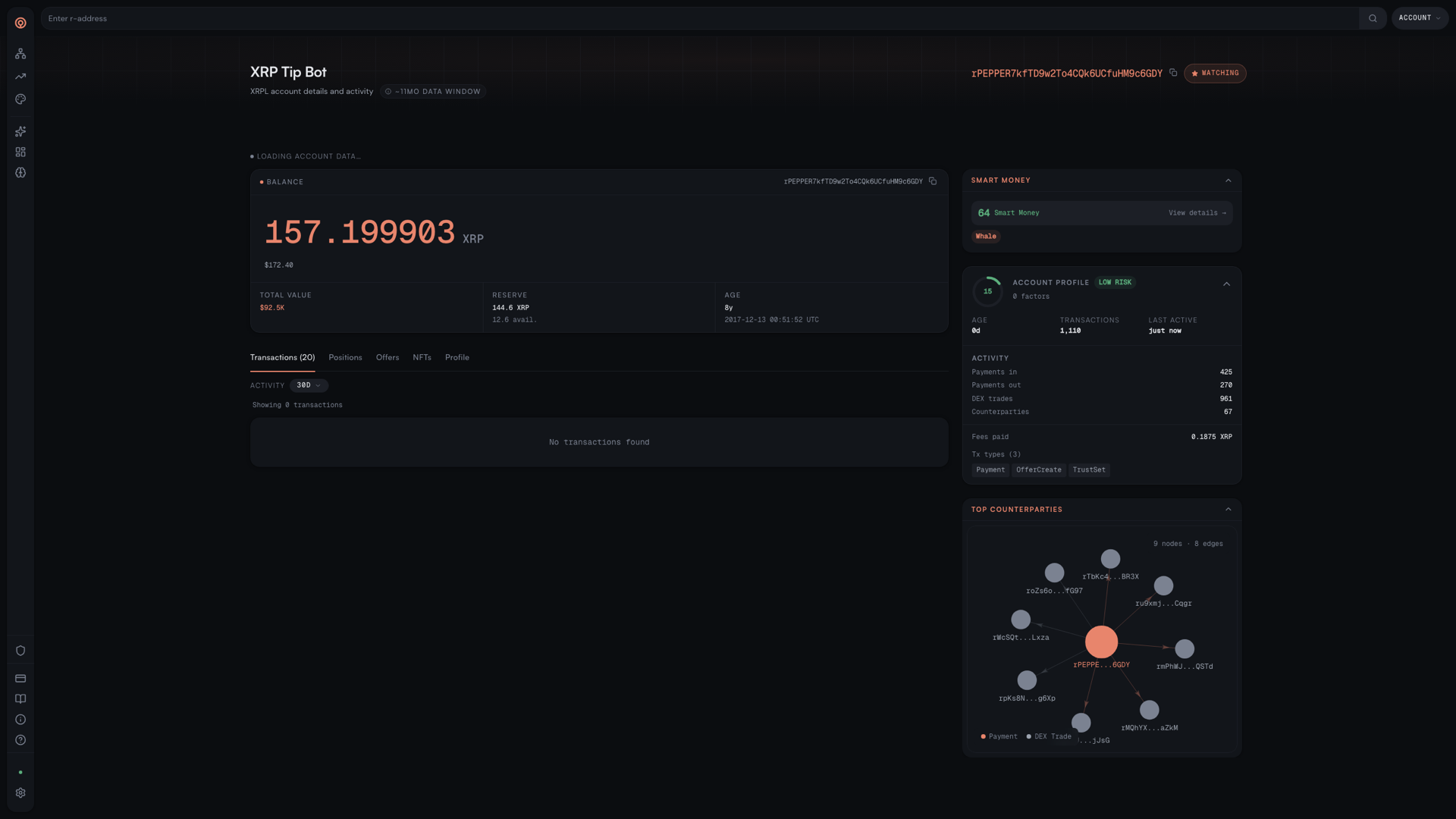

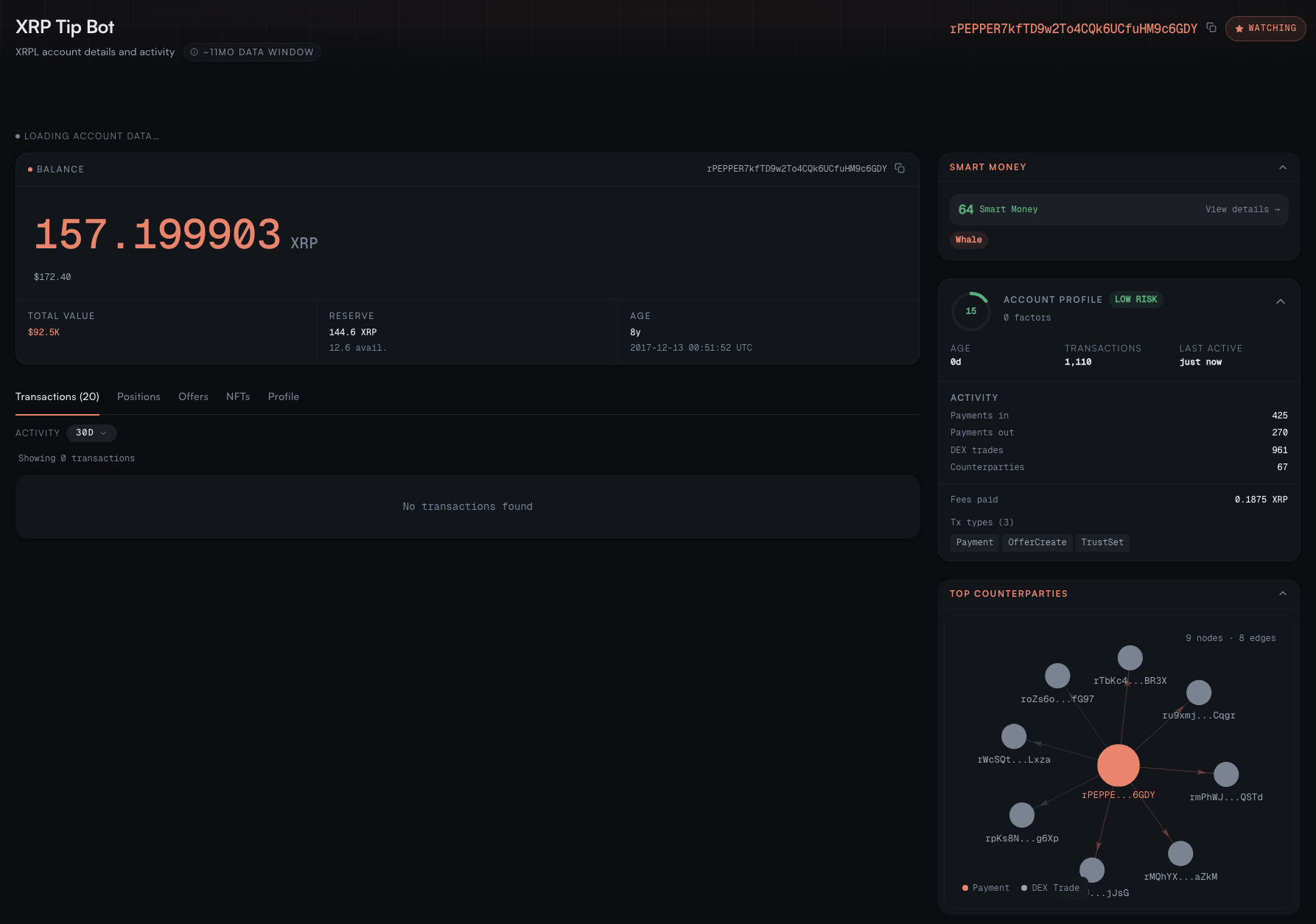

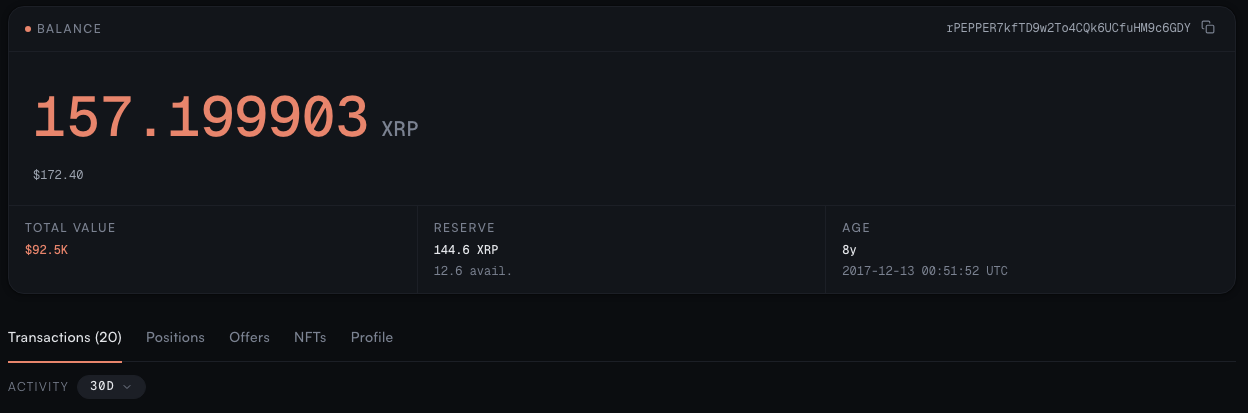

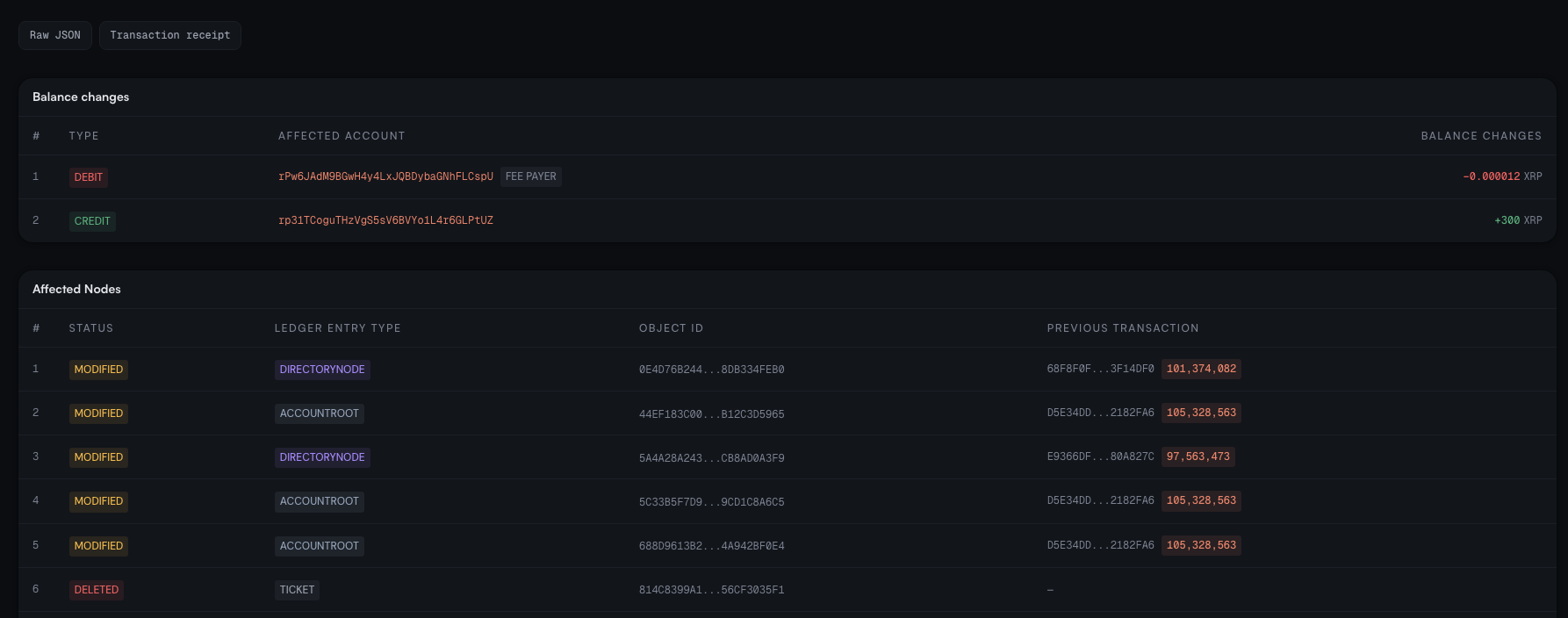

A universal search bar handles any input: paste an address, a transaction hash, a CTID, a ledger index, or a token name — it detects the type and routes you to the right page. Account pages use progressive disclosure through twelve tabs: transactions, holdings, trust lines, NFTs, AMM pools, offers, escrows, channels, MPTokens, objects, settings, activations, and ancestry. React Suspense streams each section independently so the page is usable before all data loads.

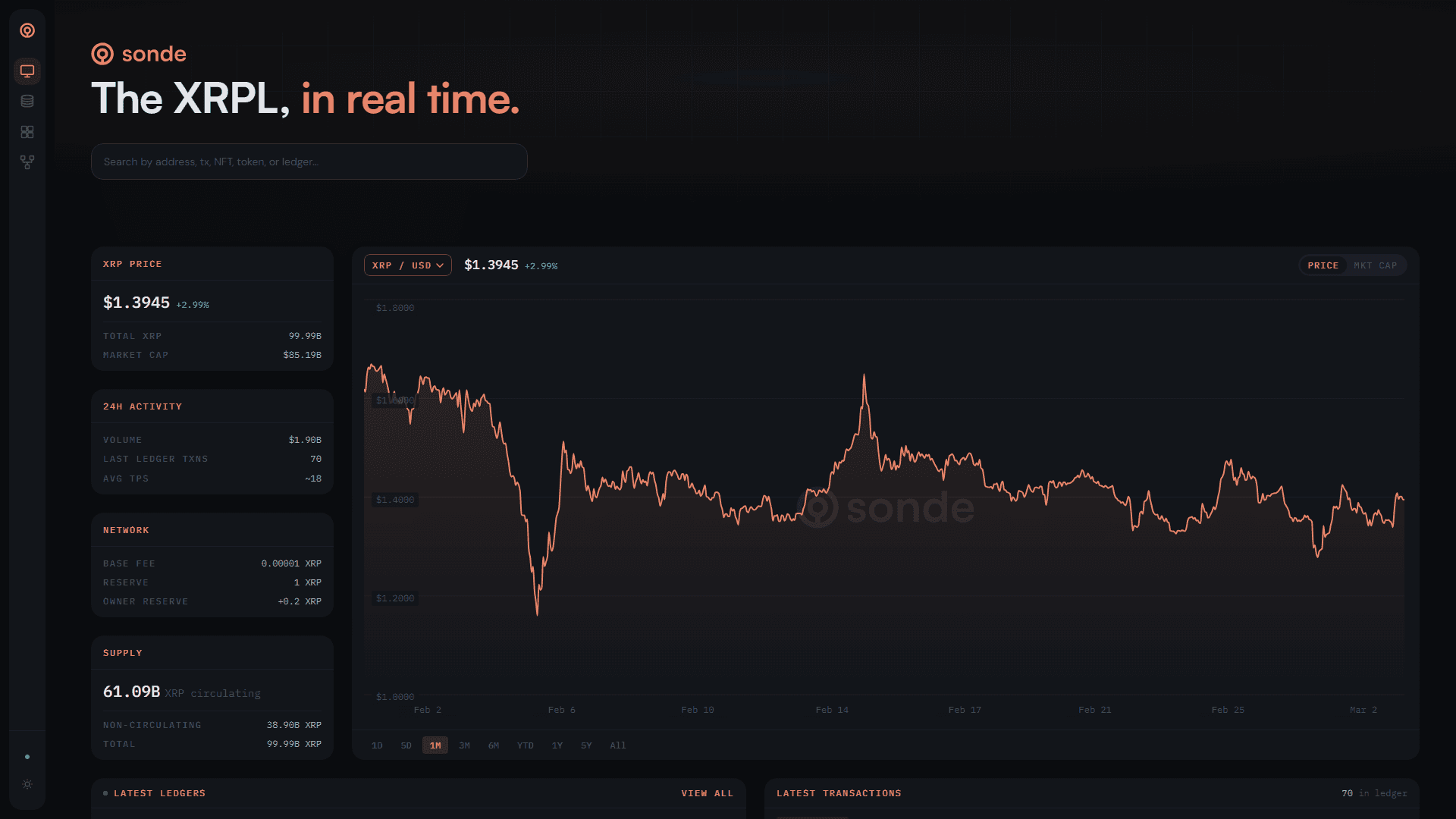

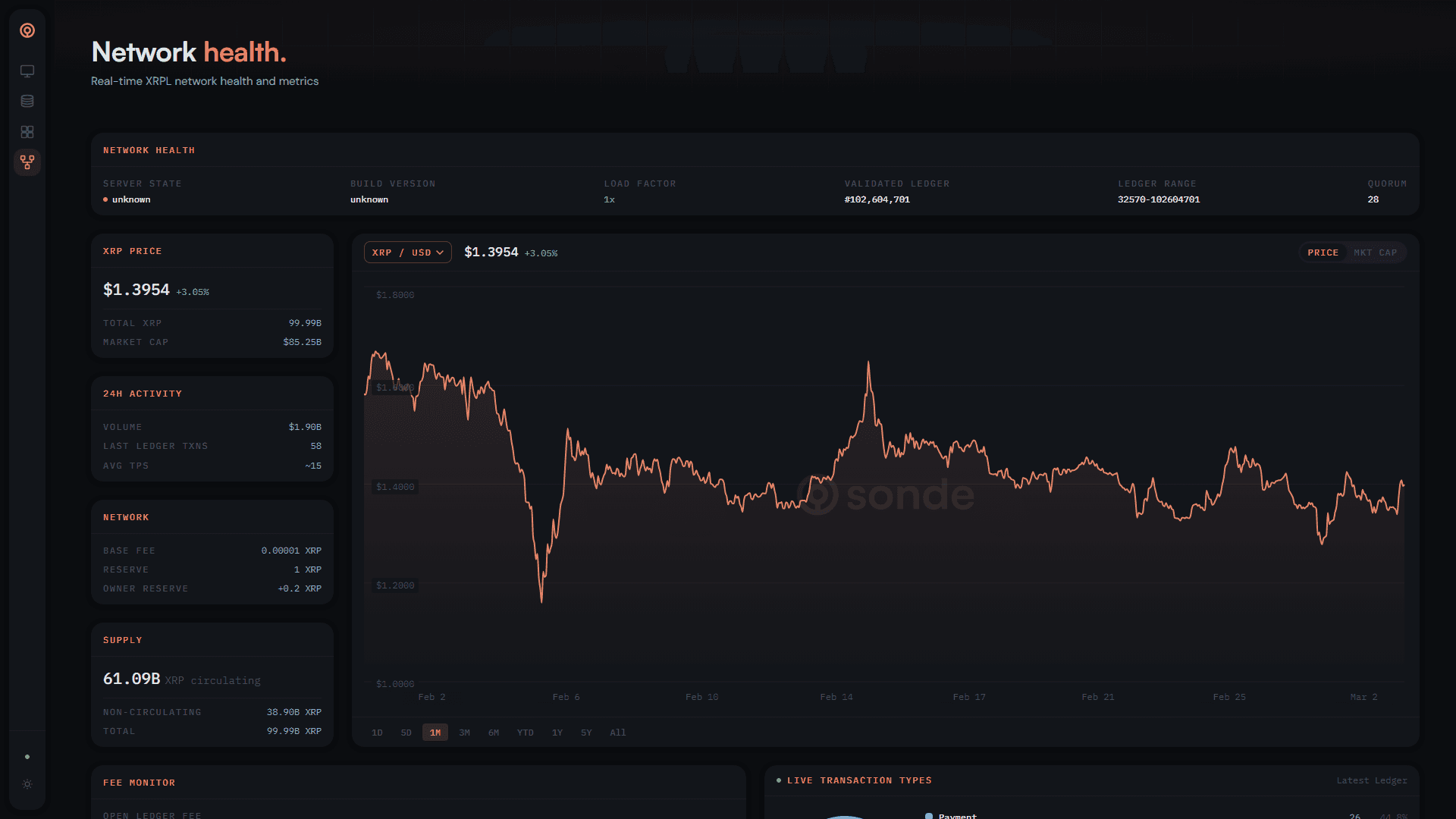

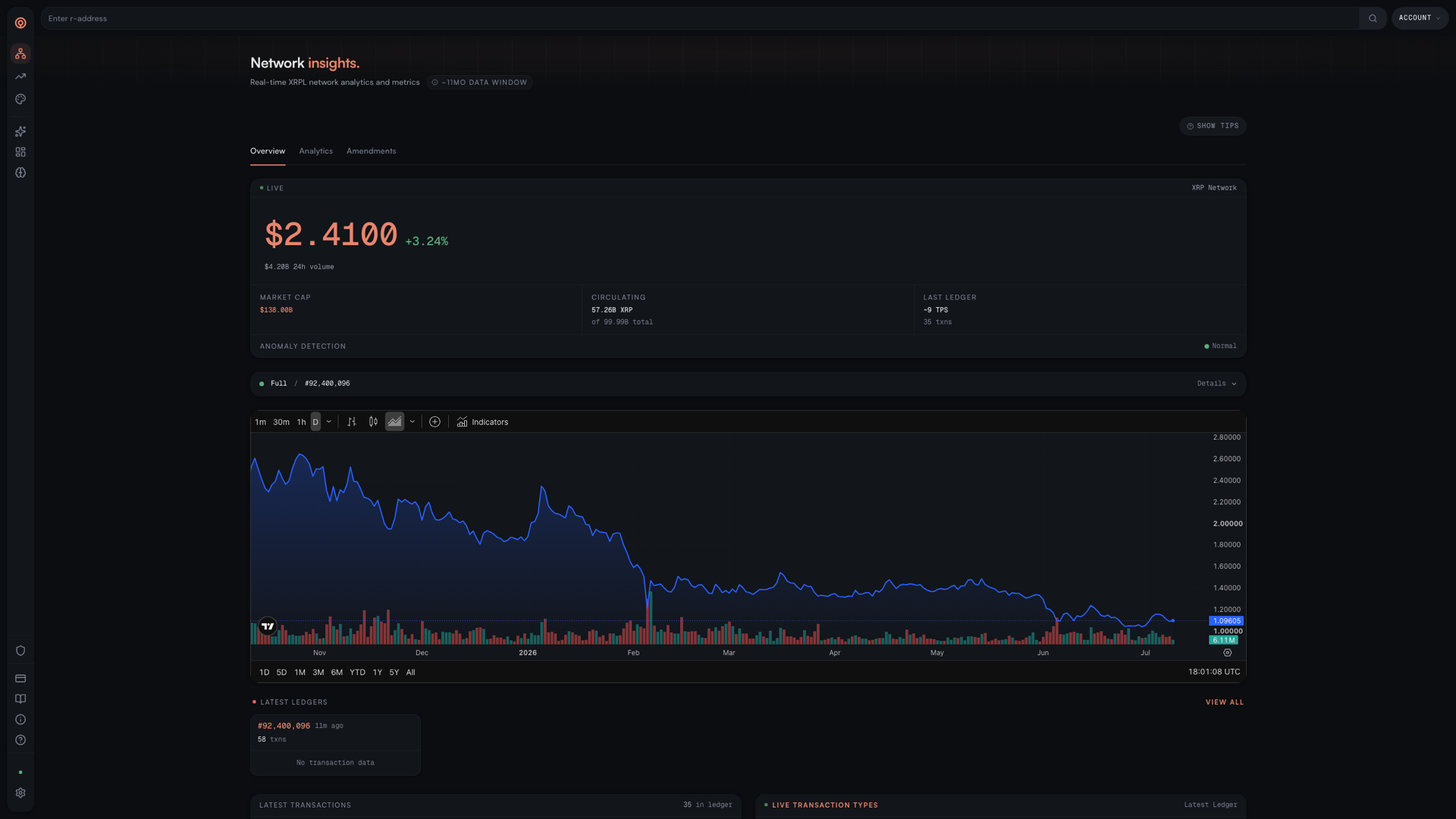

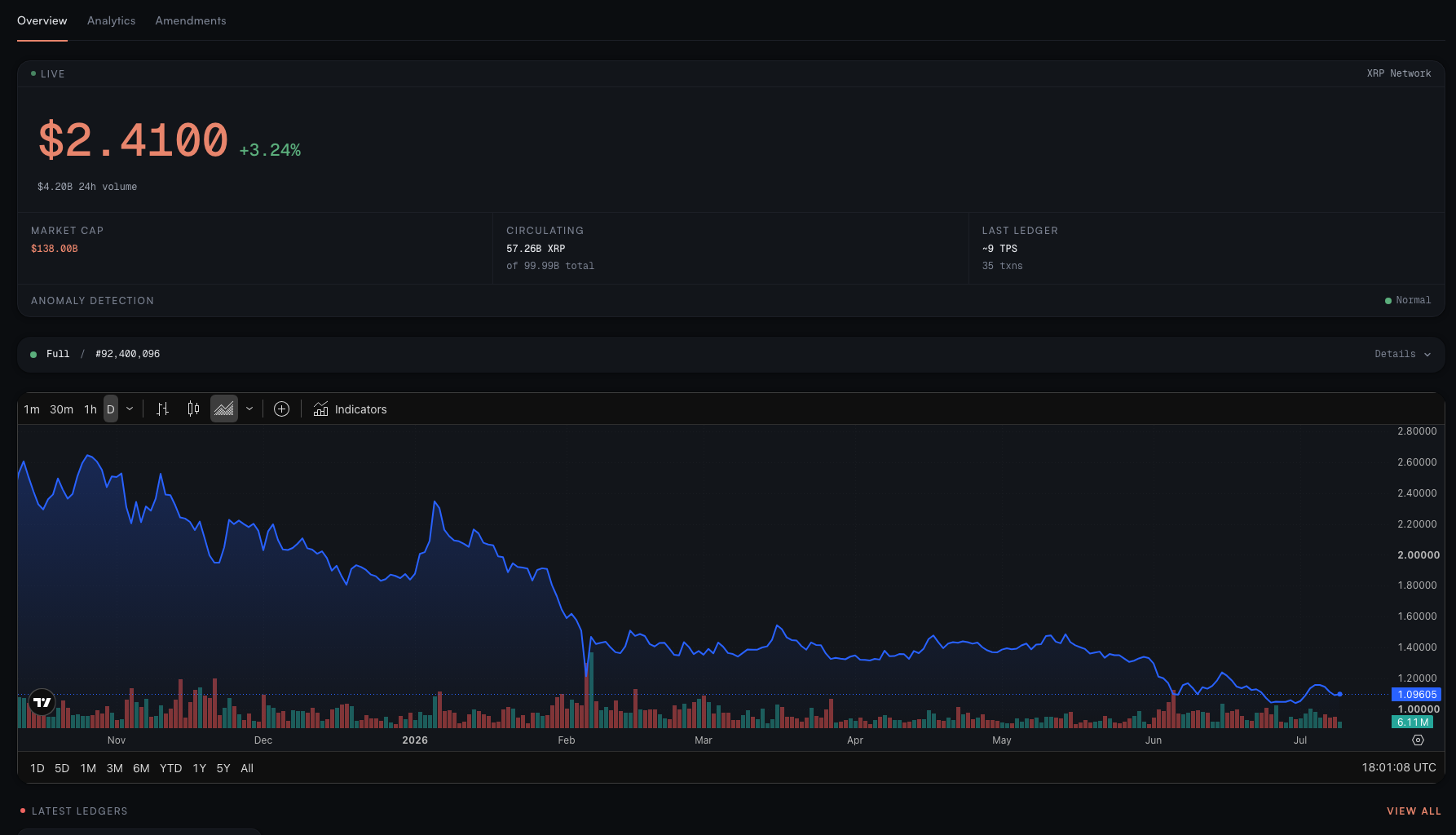

The network page is the most data-dense view — a full OHLCV candlestick chart with multi-timeframe support, live XRP price and market cap, 24-hour activity metrics, circulating supply, fee monitor, live transaction type distribution, and an amendment voting tracker. A deeper analytics tab adds configurable time-series charts for fee burn, transaction volume by type, payment corridor flows ranked by XRP volume, and ledger performance — all rendered with Recharts and updating in real time via Server-Sent Events.

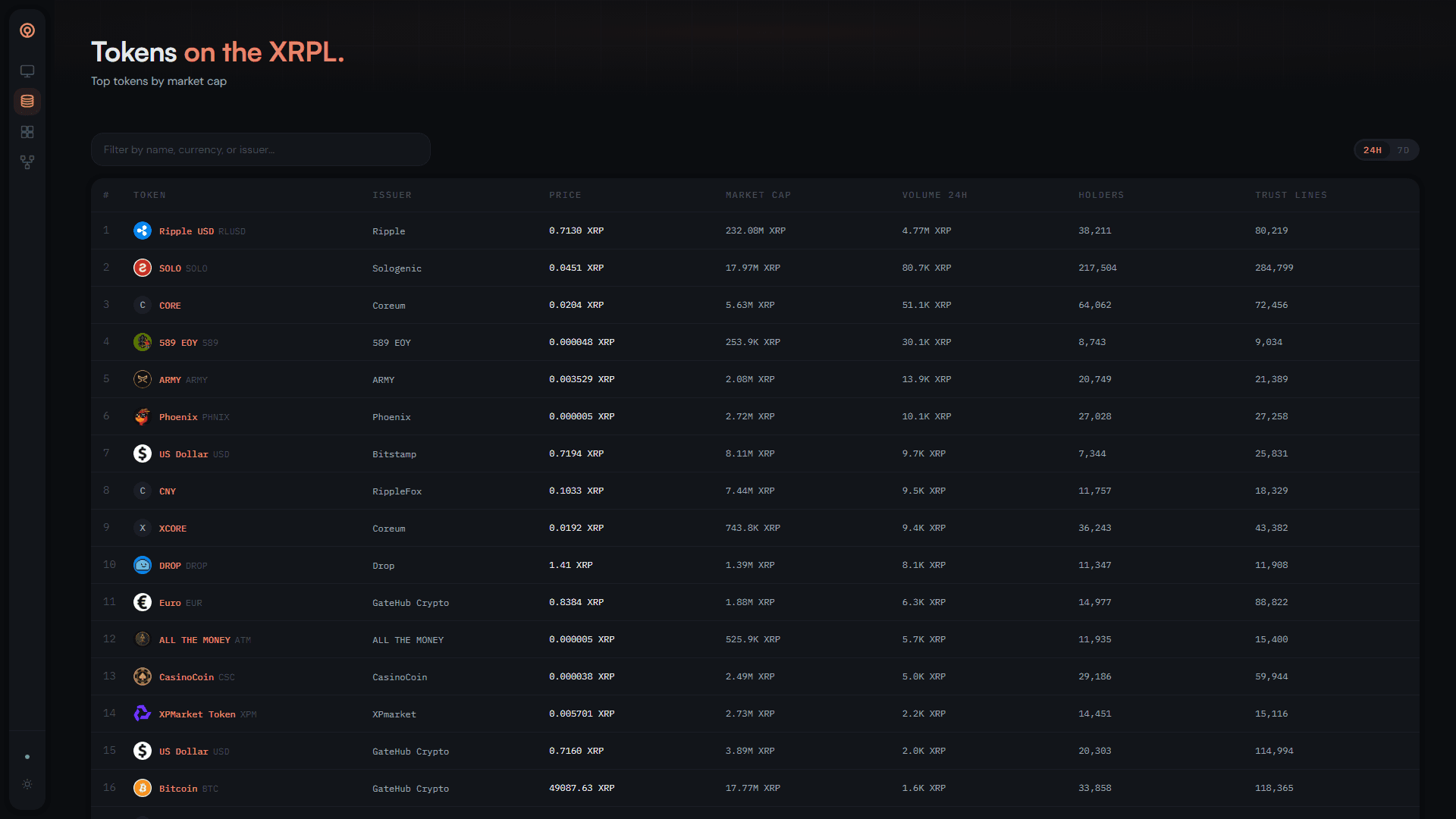

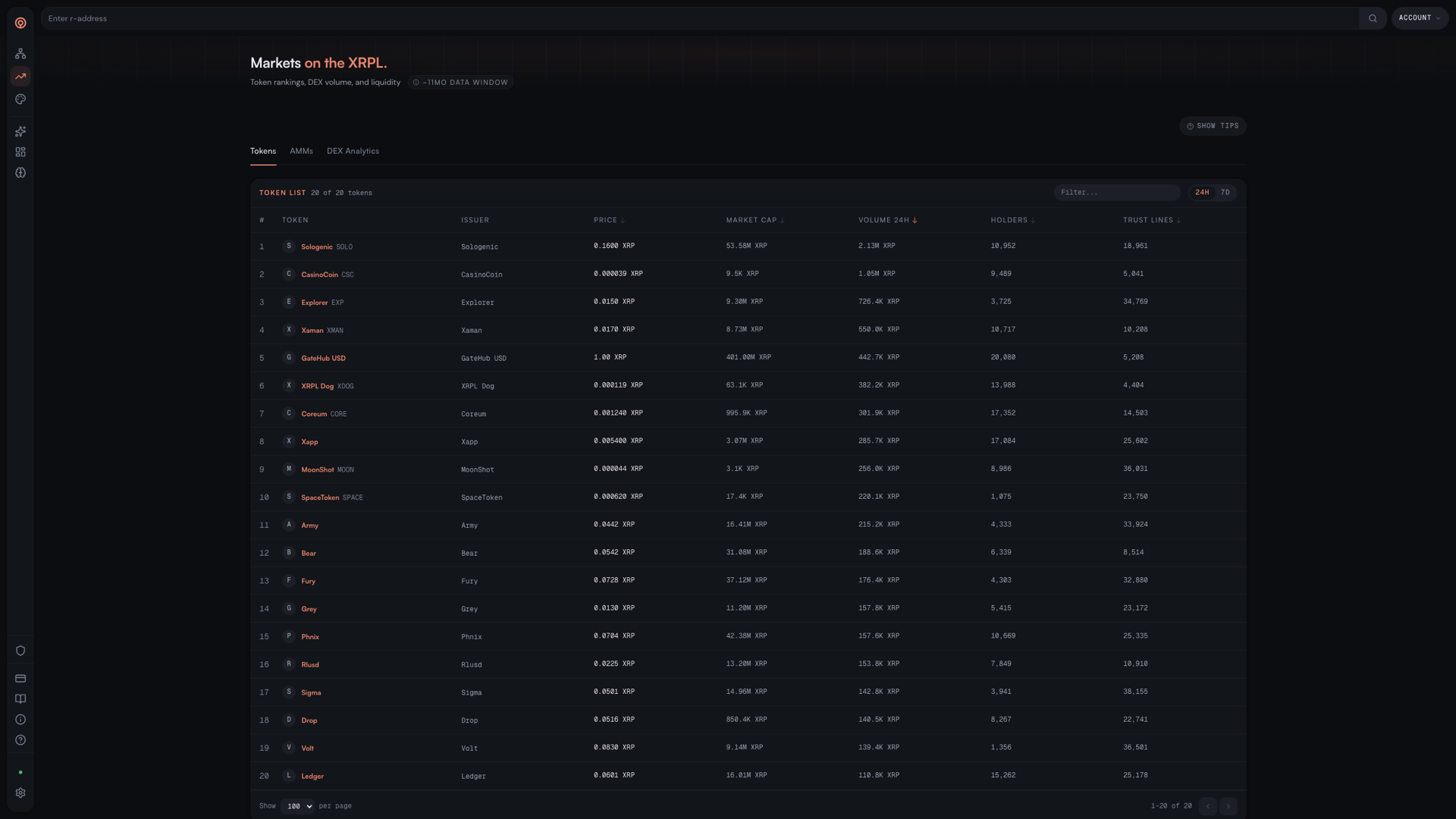

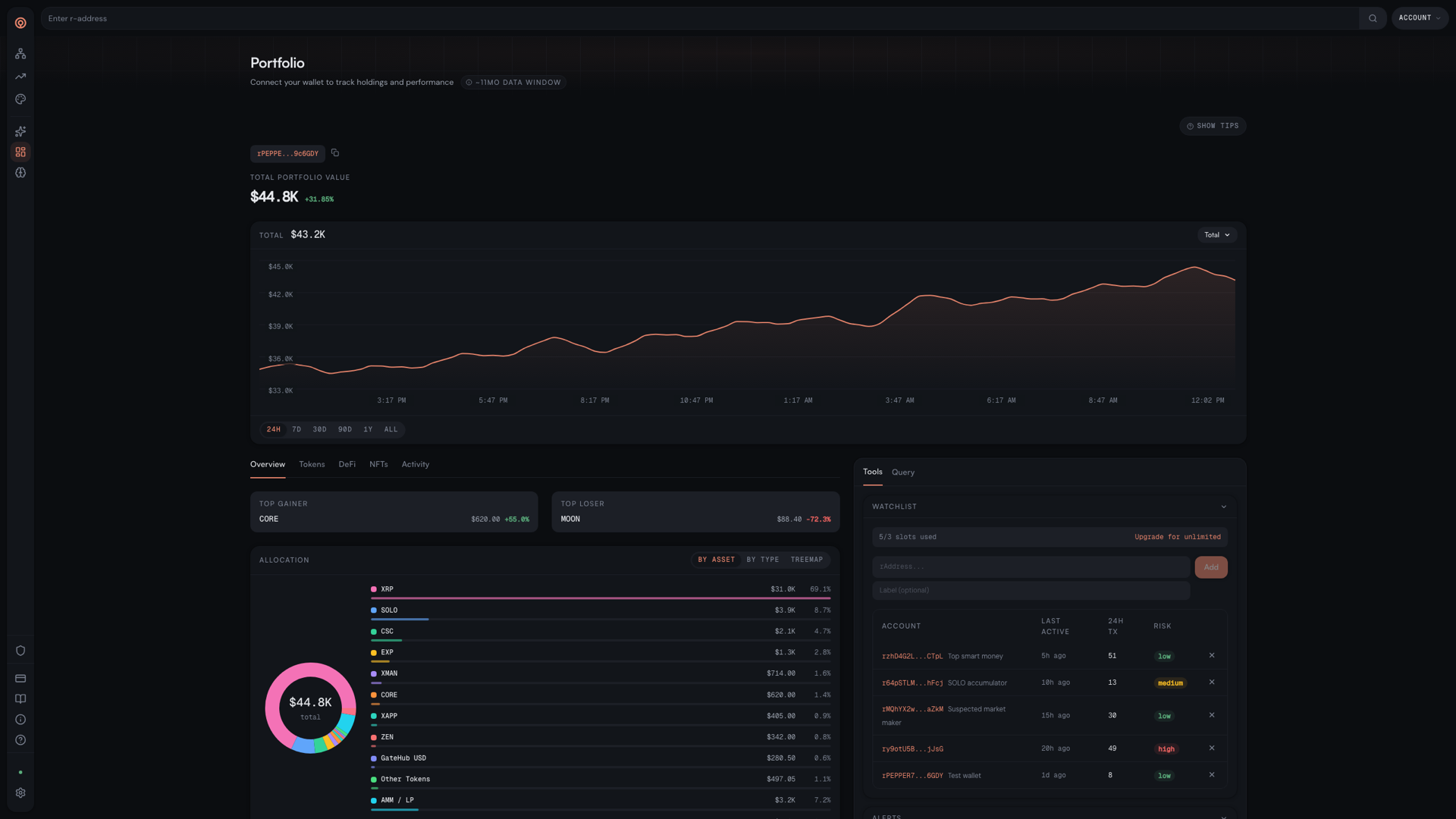

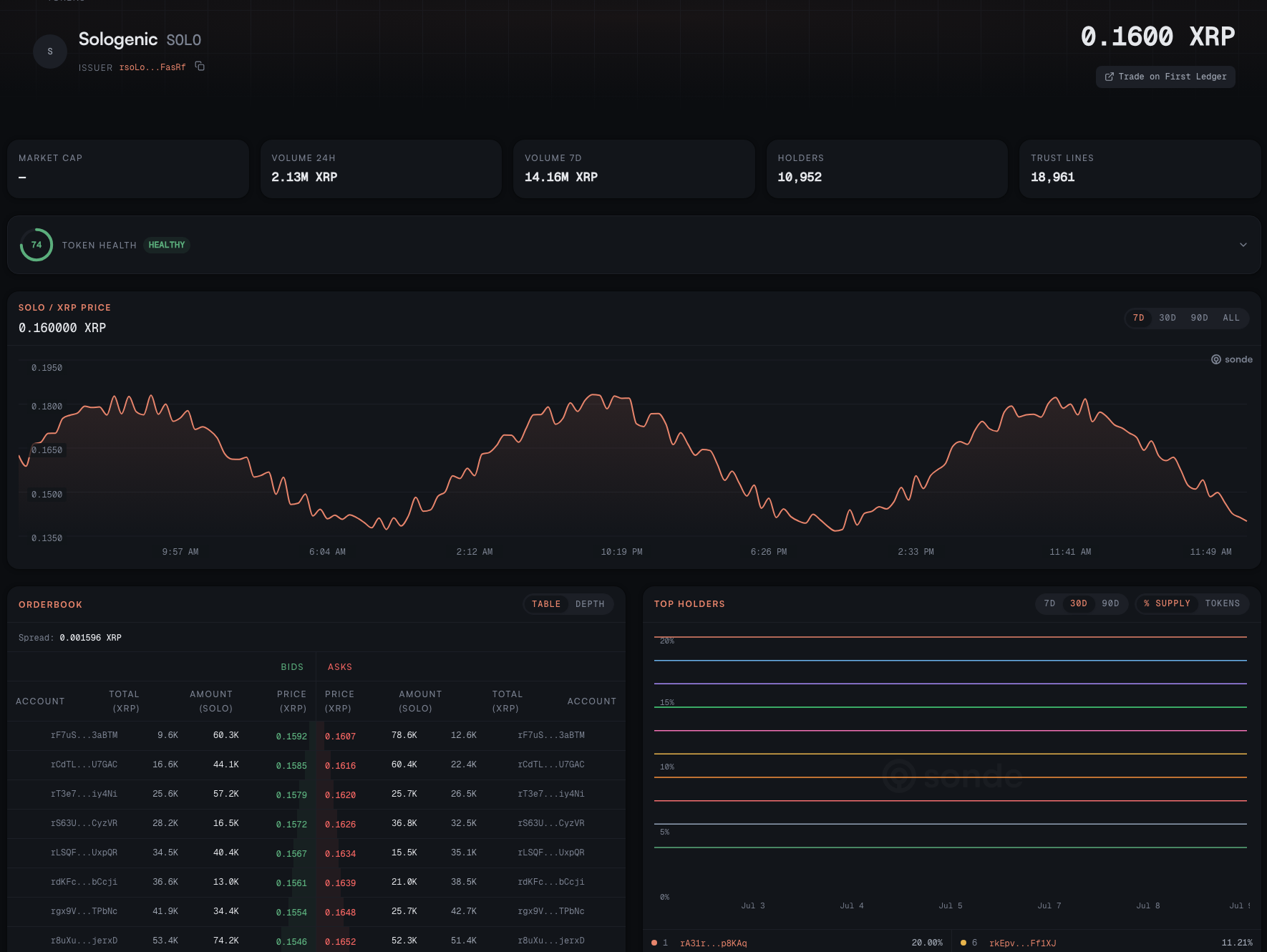

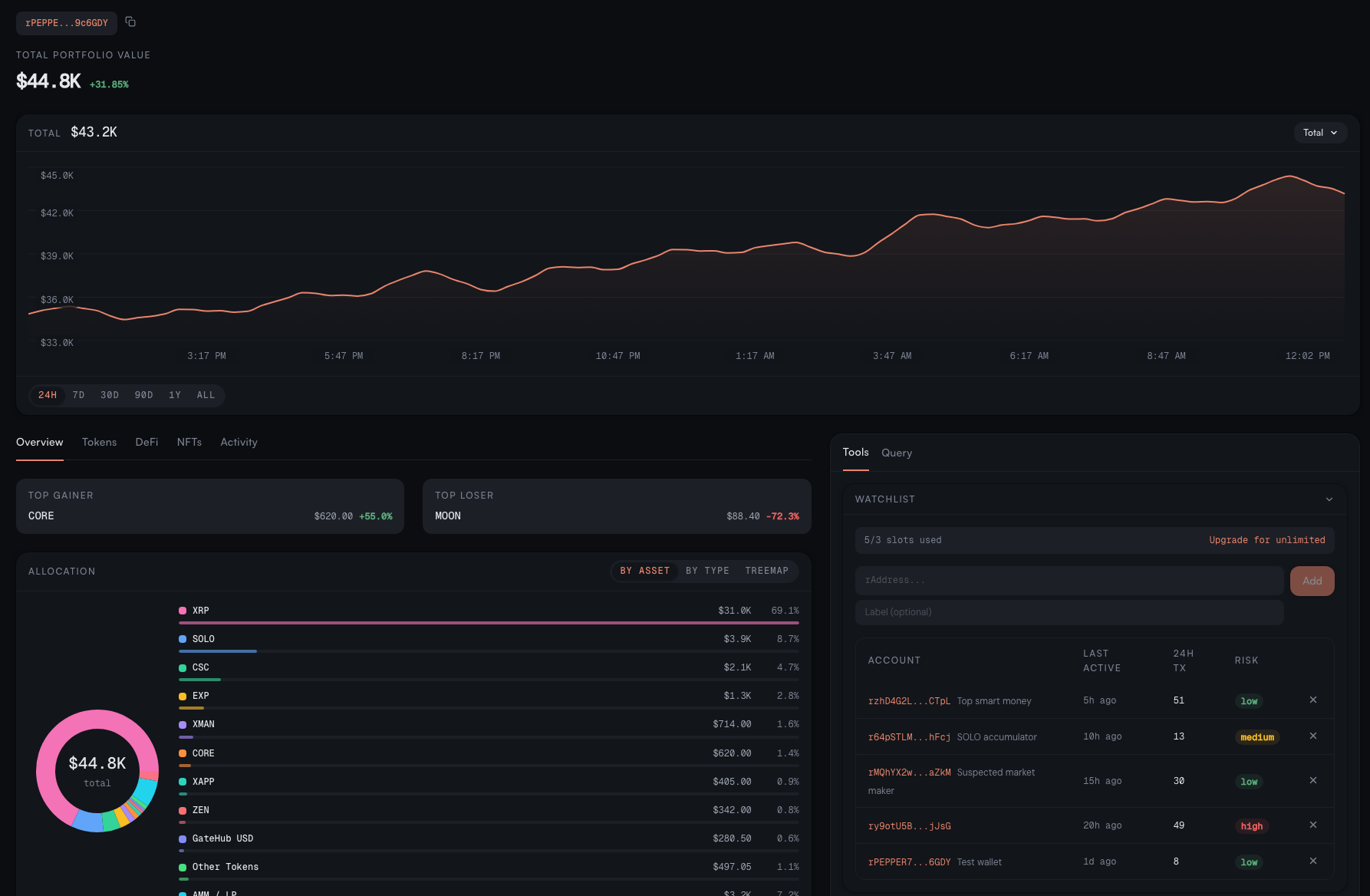

The DEX page tracks the XRP Ledger’s built-in decentralized exchange — trade volume, AMM liquidity with total value locked across 60+ pools, fee revenue by pool, and market movers. The portfolio tracker lets users connect their wallet via Joey or Xaman to view holdings, cost basis (weighted-average), realized PnL per sale, historical balance snapshots, AMM positions, and performance versus XRP. The token directory catalogs over 1,000 XRPL-issued assets with price, market cap, 24-hour volume, holder counts, and trust line data — all sortable, filterable, and drillable into per-token analytics.

The intelligence layer is what turns Sonde from an explorer into an analytical product. It answers the questions a raw transaction feed can’t: who are the wallets that consistently make money, where did these funds come from, is this activity organic or wash trading, and what’s happening on this account I’ve never heard of before.

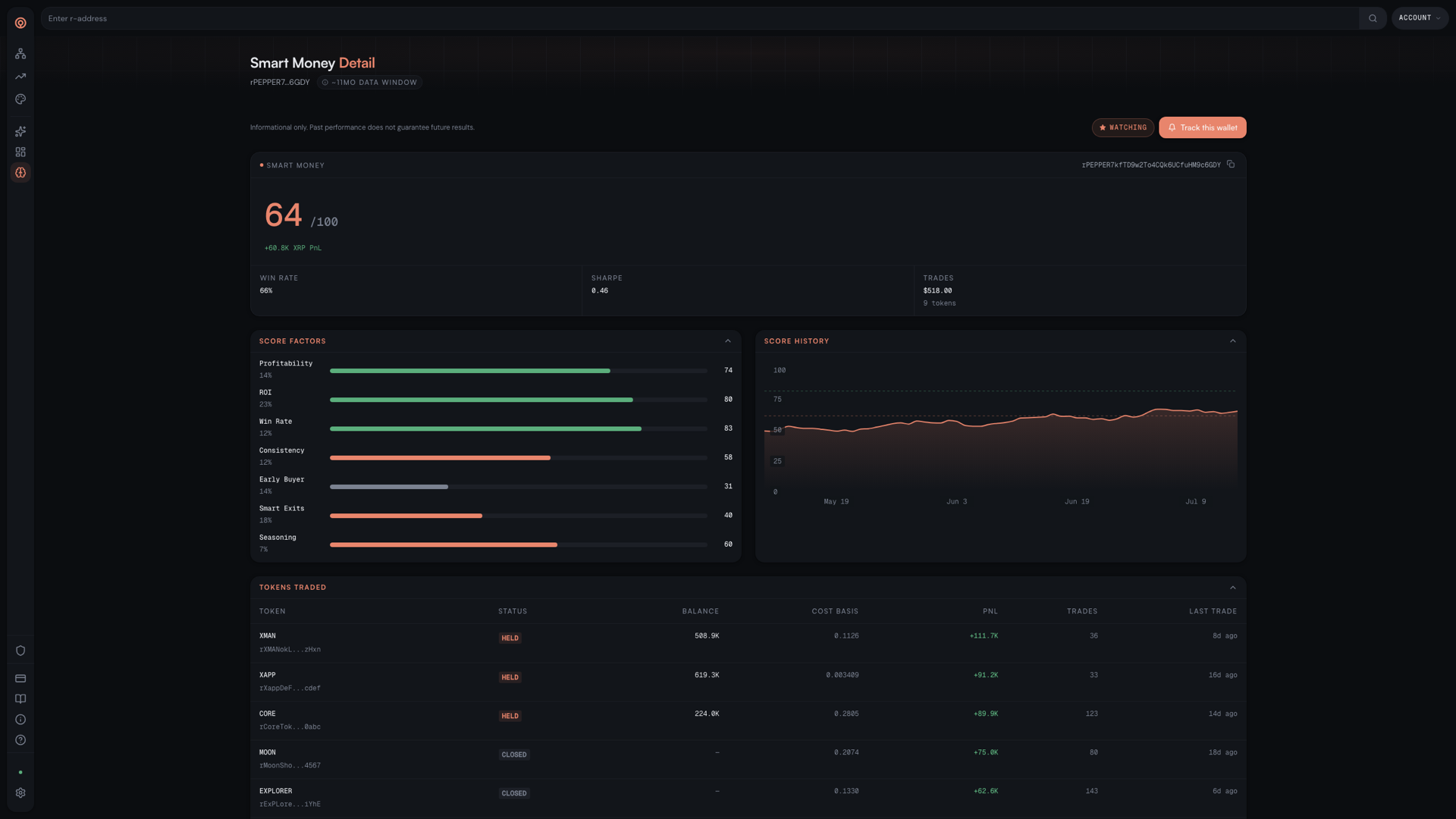

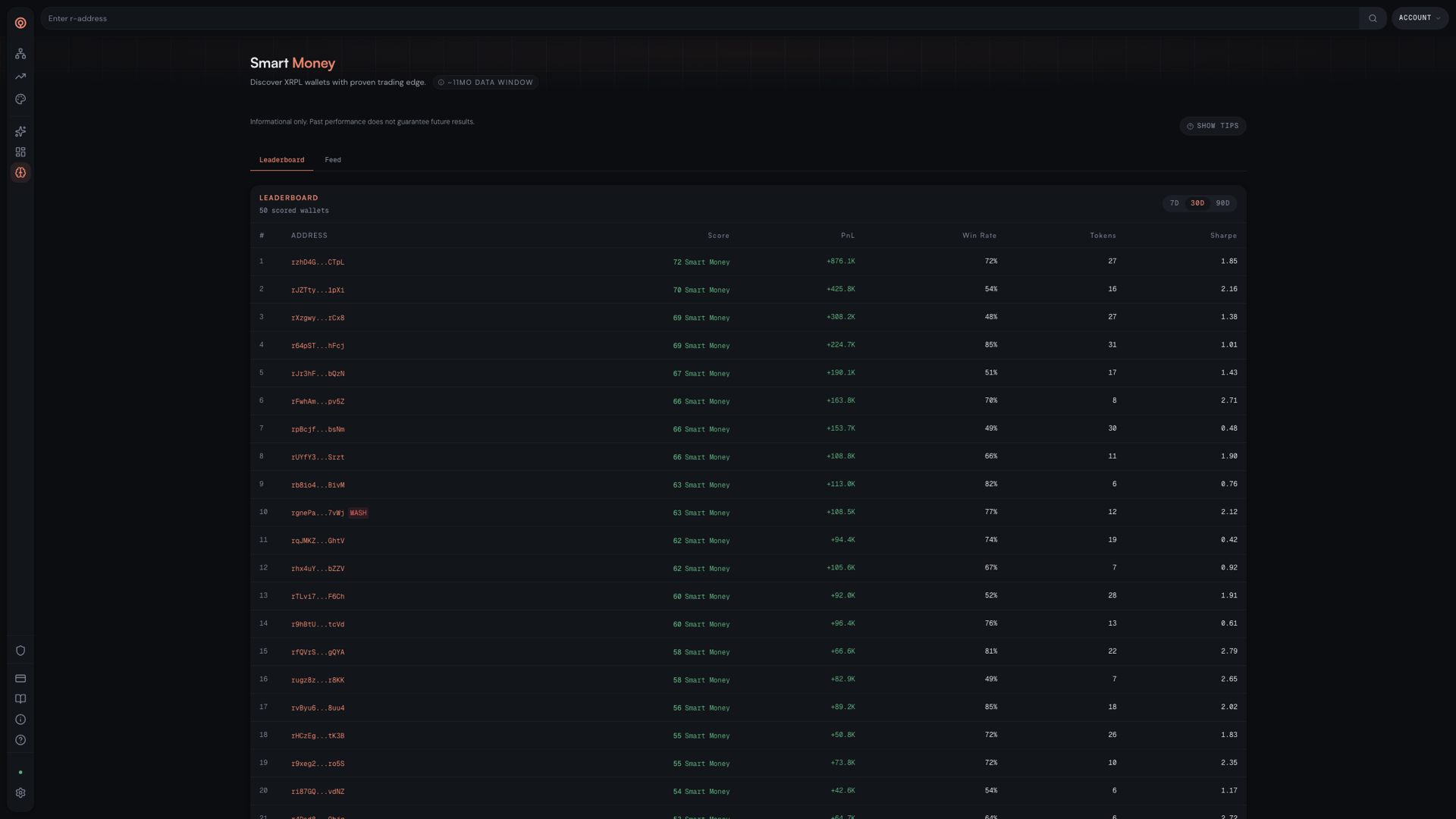

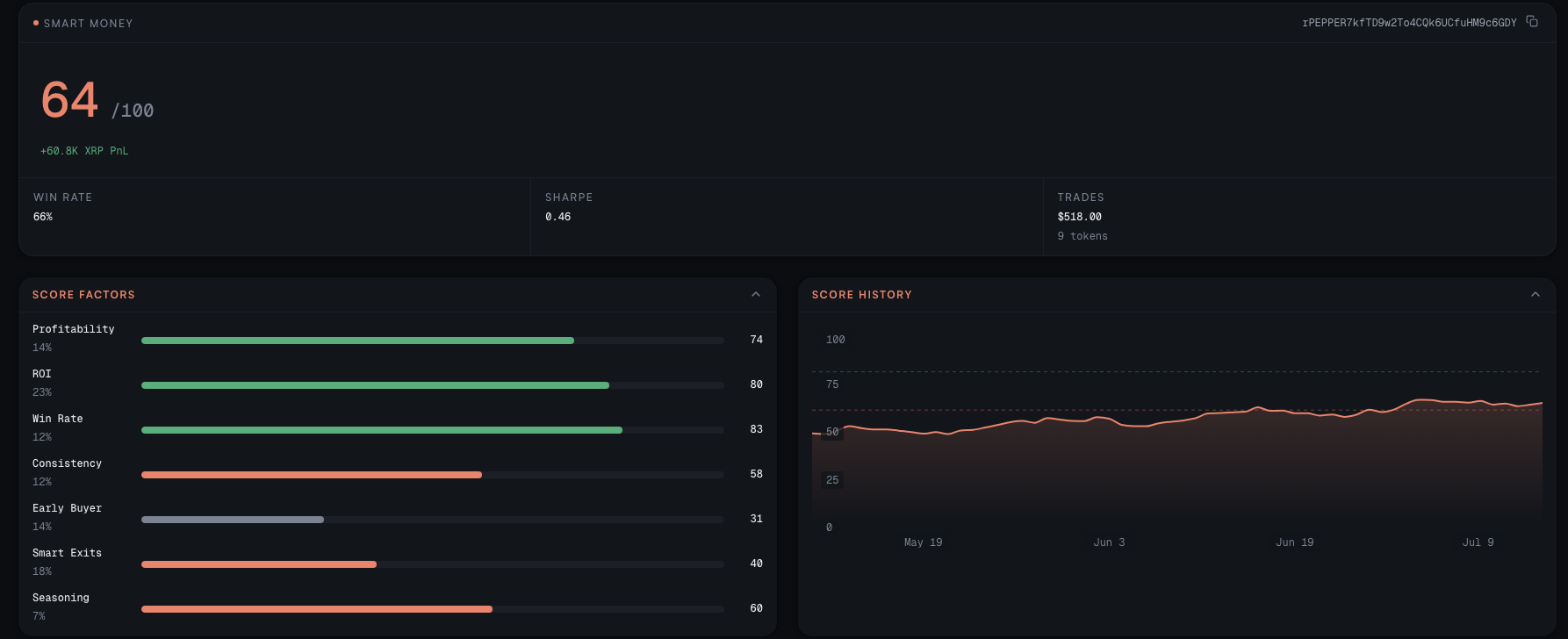

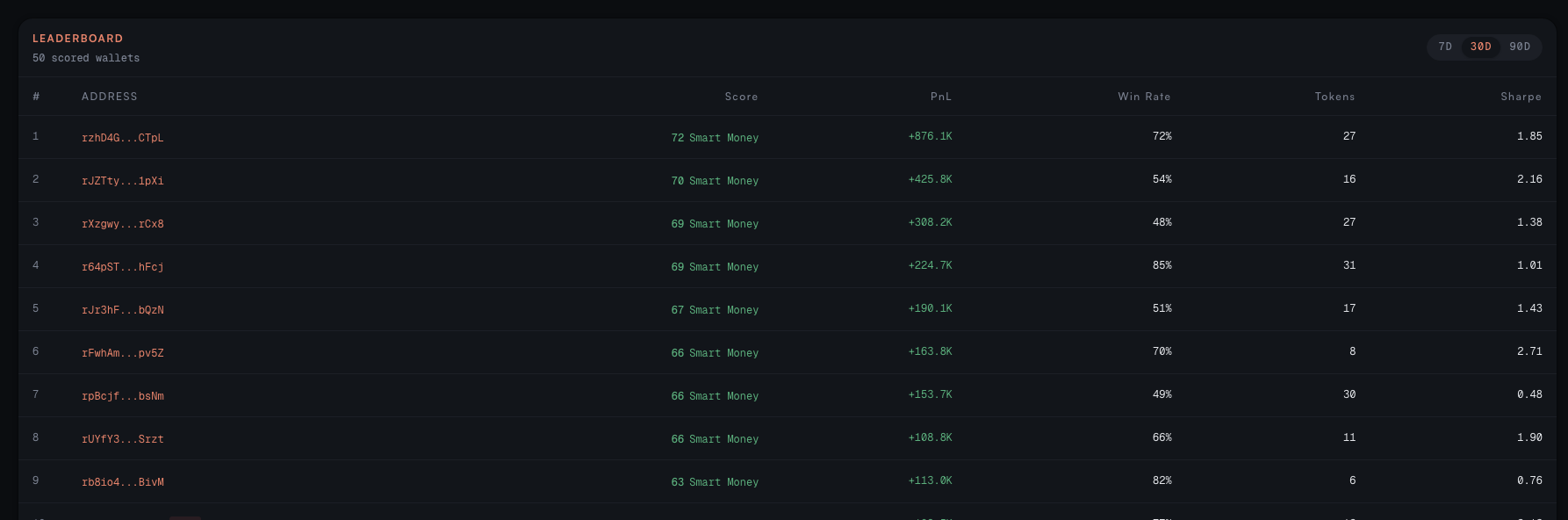

Smart money scoring ingests every DEX trade and scores wallets on profitability, timing, and consistency — surfacing the top performers in a leaderboard with drill-down into holdings, trade feeds, and trend history. Fund tracing runs Neo4j pathfinding across payment and DEX-trade edges to show how value moved between accounts across up to six hops — the kind of graph traversal that would be prohibitively slow in SQL. Account labels classify addresses (exchanges, issuers, market makers, known entities) with confidence scores and cited evidence, and those labels feed back into every other view. A risk scoring module combines wash trading heuristics with behavioral features to flag addresses that need a second look.

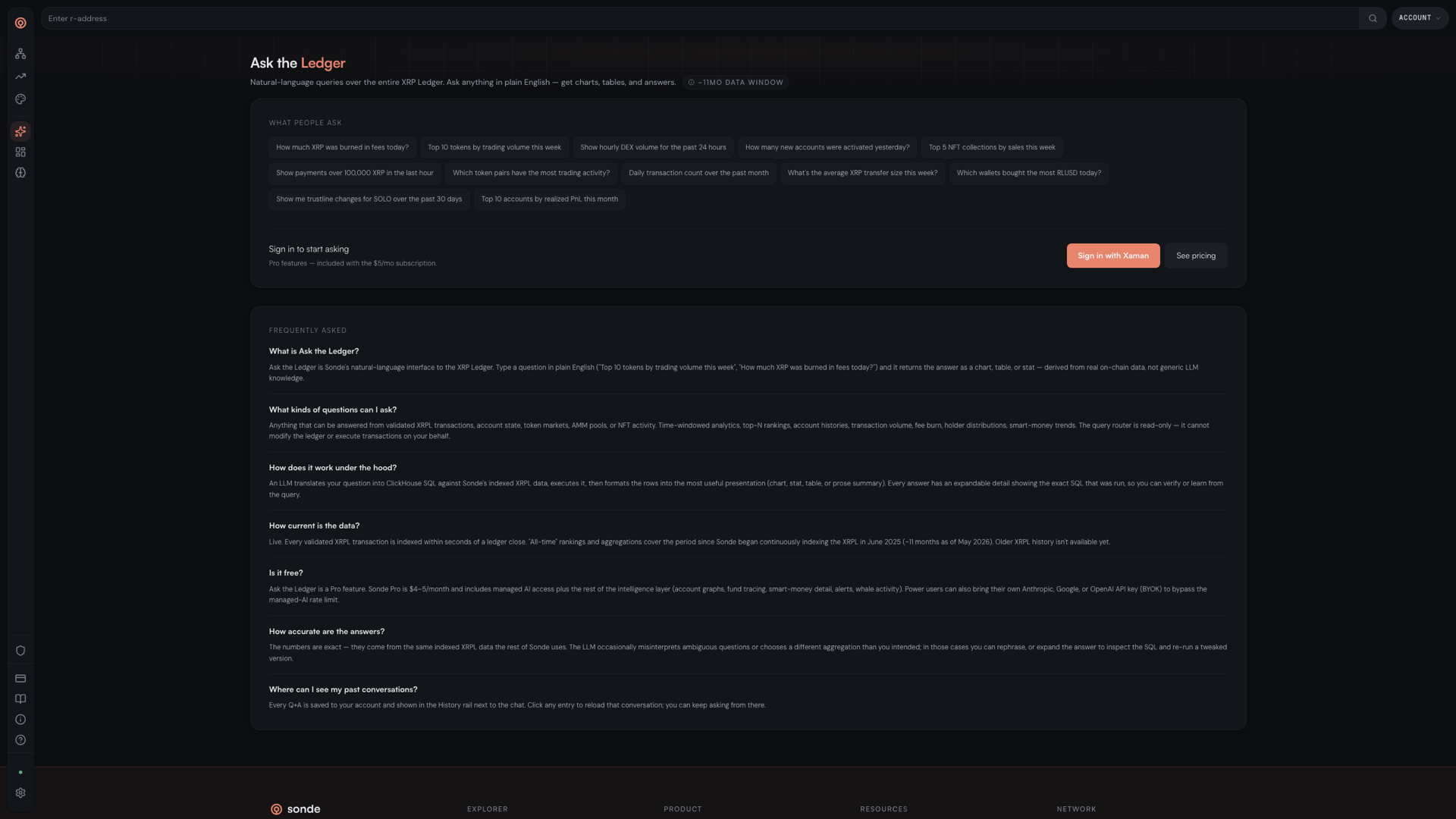

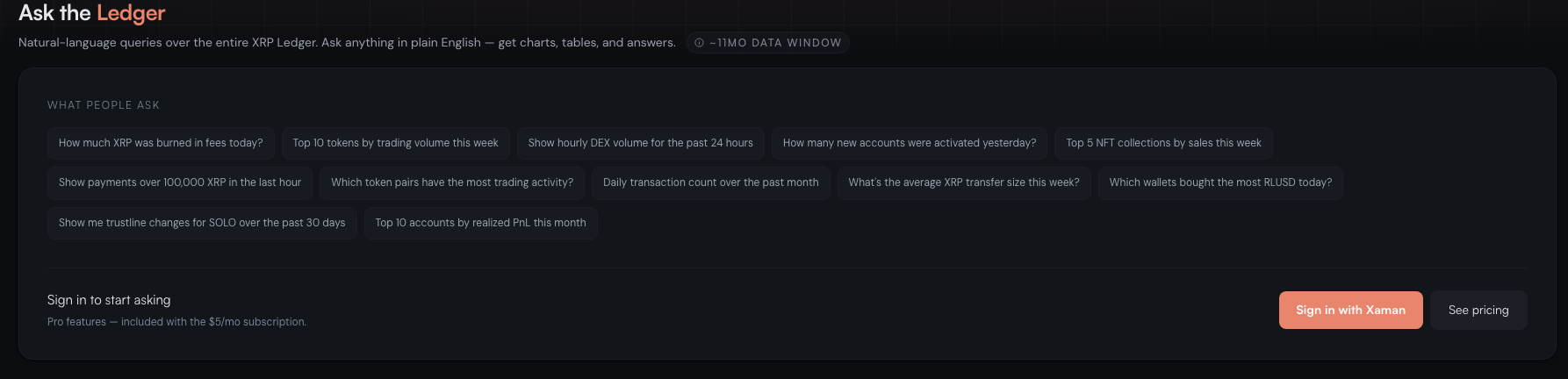

On top of all of that sits an AI investigation layer, built on Claude Haiku 4.5 with scoped tool access. Natural-language query routes questions to the right data source. Investigation mode is a multi-turn, tool-calling agent: it can pull DEX trades, trace fund flows, fetch account labels, and generate structured risk reports across a single conversation thread, with every turn persisted to Postgres so an investigation can be resumed or reviewed later. Power users who prefer a stronger model can bring their own API key via a header and bypass rate limits entirely.

Sonde is a polyglot persistence system — three databases, each chosen for what it’s actually good at. Trying to run the whole product on Postgres would have been possible for the explorer alone, but it would have collapsed the moment the intelligence layer needed to aggregate hundreds of millions of DEX trades or traverse a payment graph six hops deep.

Postgres handles OLTP — app data, sessions, subscriptions, wallet-tracked portfolios, cost basis, realized PnL, smart money scores, account labels, investigation threads, and the hourly/daily aggregation tables (volume, fees, tx counts, payment corridors, holder snapshots). It’s the source of truth for everything that needs transactional guarantees and indexed lookups. ClickHouse handles OLAP — the raw firehose of transactions, DEX fills, and trust line events, partitioned by month and ordered for the analytical queries the intelligence layer actually runs. Materialized views roll up hourly tx volume, daily active accounts, daily DEX pair volume, and trust line counts so dashboards hit pre-aggregated data instead of scanning cold partitions. Neo4j handles graph — accounts as nodes, payments and DEX trades as edges — making shortest-path, counterparty, and fund-tracing queries cheap in a way SQL can’t match.

Ownership is strict: each data type has exactly one authoritative store, and cross-store queries resolve IDs in Postgres first (smaller, indexed), then filter ClickHouse or Neo4j with the result set. Two ingestion pipelines feed the system. The main pipeline subscribes to XRPL ledger closes, extracts aggregations, and batch-upserts them to Postgres in a single transaction per ledger — no raw transactions stored here, which keeps Postgres lean at roughly 100MB/month. The intel pipeline polls `ingested_ledgers` every five seconds and writes the raw layer to ClickHouse and Neo4j with independent pointers, so a failure in one store doesn’t block the other. Both pipelines are idempotent and resumable, with backfill scripts for historical catch-up.

Sonde maintains three separate persistent WebSocket connections to the XRP Ledger mainnet, each with its own workload. xrplClient serves user-facing requests and the Live Data Manager; ingestionClient handles the heavy expanded-ledger fetches for the main ingestion pipeline; intelligenceClient runs background intel jobs. Separating them means a slow ingestion fetch can never block a user loading an account page, and a background scoring job can never starve the real-time feed. Total capacity is roughly 3,000 messages per minute across the three connections, with round-robin across four upstream nodes and automatic failover.

The Live Data Manager sits on the server and fans out real-time events — new ledgers, fee updates, price changes, transaction bursts — to connected clients via Server-Sent Events. Caching is layered: a server-side LRU caches finalized transactions indefinitely (immutable), with short TTLs for account data, ledger data, fees, orderbooks, and token detail pages. On the client, SWR dedupes fetches and keeps previous data during refetches so pages never flash empty. Account history pages paginate through XRPL markers with per-loop error handling, ensuring no transactions are missed even for accounts with thousands of entries.

Sonde has no passwords, no emails, and no sign-up form. Users authenticate by proving they own an XRPL wallet. The primary flow is Joey via WalletConnect v2: the client generates a single-use nonce, embeds it in a dummy AccountSet transaction, and asks the wallet to sign. The server decodes the signed blob, verifies the cryptographic signature, validates the nonce, derives the address from the signing pubkey, and issues a JWT in an HttpOnly cookie with a seven-day TTL. Xaman is supported as a legacy path with the same session model. Subscription tier is looked up fresh from Postgres with a short cache — not embedded in the JWT — so tier changes take effect immediately without re-authentication.

The commercial model is two tiers: Free and Pro. Free covers the full explorer, network analytics, DEX views, token and NFT browsing, anomaly feed, and a limited smart money leaderboard. Pro ($9/month or $79/year via Stripe; $8/month or $75/year via crypto) unlocks the portfolio suite, full smart money drill-down, alerts, watchlists, and the entire intelligence layer — fund tracing, risk scoring, AI-powered investigations. Managed AI runs on Claude Haiku 4.5 with per-user monthly buckets for queries and investigations; users who bring their own API key bypass the limits and pay their own compute. Crypto payments are monitored by a real-time watcher that verifies incoming XRP or RLUSD against expected subscription amounts.

Sonde runs in production at sondelab.com as a three-part product: a public block explorer, a network analytics suite, and an intelligence layer — all of it on a polyglot data architecture, wallet-based auth, and a subscription model that’s live and taking payments in both fiat and crypto. What started as a design exercise in information density became a complete, commercially operating product: a real-time window into the XRP Ledger that treats blockchain data with the same clarity and structure as any well-designed financial tool, and that keeps its promise even as the scope expanded from explorer to analytics to on-chain intelligence.
